Antifungal effect of aqueous and ethanolic extracts of neem leaves, stem bark and seeds on fungal rot diseases of yam and cocoyam

Abstract

Background

Fungal rot diseases of white yam (Discorea rotundata) tubers and cocoyam (Colocasia esculenta) are the major post-harvest challenges in the availability of these root tubers. The use of biological extract of plants will prevent post-harvest losses without any negative health challenge.

Methods

Microwave-assisted method of extraction was used for both aqueous and ethanolic extracts of neem samples. Fungal-rotted yam and fungal-rotted cocoyam samples were collected, and fungi from them were cultured on potato dextrose agar (PDA). The same medium was used for subculturing until pure fungal isolates were obtained. Pathogenicity tests were carried out on the yam and cocoyam tubers by inoculating with isolated fungi. The neem extracts were integrated into the PDA and their antifungal effects examined.

Results and discussion

From the yam, Aspergillus ochareus, Sclerotium rolfsii and Lasidiodiplodia theobromae were isolated, while Aspergillus niger, Aspergillus oryzae and Rhizopus stolonifer were isolated from cocoyam samples. After 14 days of inoculation, isolated fungi were shown to be highly pathogenic except R. stolonifer and A. ochareus, which showed moderate pathogenicity. All the plant extracts showed antifungal activities at varied percentage mean zones of inhibition. The inhibition against fungal growth from the isolates of the rotted cocoyam gave mean inhibition between 39.53 ± 8.39% and 96.76 ± 1.60%. Except for ethanolic stem bark extract which gave 39.53 ± 8.39% limited zone of inhibition against A. niger growth, the rest of the extract exhibited good zones of inhibition against cocoyam-isolated fungi ranging between 72.87 ± 3.55 and 96.79 ± 1.60%. On fungal isolates from yam, the mean percentage zones of inhibition of all extracts of the neem plant parts showed more effectiveness than the positive control (Ketoconazole) against L. theobromae growth. Aqueous stem bark extract with 93.80 ± 1.78% zone of inhibition showed comparable effectiveness to the control (100% inhibition) against A. ochareus growth, while against S. rolfii growth, there was good inhibition by all the extracts though not to the extent as that of the control.

Conclusion

The fungitoxic potential of these plant extracts on rot-inducing fungi of stored yam and cocoyam suggests that the above extracts used in this study can be put to use by farmers as alternative to commercial/synthetic fungicides.

Background

Neem plant (Azadirachta indica) is well known for its medicinal properties. Known with different names in different parts of the world (Indian Lilac, Margosa, Dogonyaro), neem has been well established for its medicinal properties such as in treatment of various ailments. In Africa, it is popular in the treatment of malaria and for its effectiveness as an antibacterial agent. Recently, A. indica like other similar botanicals is gaining prominence in its application in treatment of plant-related diseases. In a research conducted by Mahmoud et al. [1], 5% aqueous leaf extract of neem was shown to cause inhibition in growth of six tested fungal pathogens (Aspergillus flavus, Aspergillus fumigatus, Aspergillus niger, Aspergillus terreus, Candida albicans and Microsporum gypseum). In another research, aqueous neem extracts inhibited A. niger more than C. albicans, while alcohol neem extract inhibited C. albicans better than A. niger [2]. Neem plant is effective against fungal growth, a quality which may be used in increasing the shelf life of plant tubers after harvest.

Yam (Discorea spp) belonging to the genus “Dioscorea” is a monocotyledon which is annually produced worldwide. According to IITA [3, 4], Nigeria accounting for 71.9% of yam production worldwide remains the principal producer. Yam-production zones show dominant stretches from Cote d’ivoire through Ghana, Togo, Benin, Nigeria, Cameroon, Gabon, Central African Republic and the Western part of the democratic Republic of Congo, while in East Africa, Sudan and Ethiopia are the major yam producers [5]. According to Opara [6], soft rots in yam are caused mainly by fungi especially Penicillium spp, Fusarium oxysporum and Botrydiplodia theobromae, while dry rots among others is principally caused by Rosselinia and Sphaerostilbe. Other fungi also include Rhizopus nodosus and Fusarium solani. Infection in the field can persist and lead to rotting during storage, and control strategy involves treating tubers with systemic fungicide or alkaline material such as Bordeaux mixture and providing adequate aeration and inspecting stored tuber regularly [6]. However, the ideal treatment would be the use of organic fungicide such as neem plant (leave, root and stem bark) extracts; since neem itself is commonly consumed as herb and useful as traditional medicine. Therefore, it should be less toxic and biologically healthy in food preservation. Cocoyam belongs to the Araceae family [7]. Colocasisa esculenta, otherwise known as taro, is more popular in Nigeria than Xanthosoma sagittaifolium variety, also known as tannia [8]. Some of the popular uses of cocoyam in Nigeria include use as soup thickener, consumption as porridge with beans, cassava chips and vegetables as well as formation into chips. It is used as antipoisoning and wound-healing agents by applying the fresh mash in the opening of sores. Thus, it possesses antibiotic properties. It is also formed into flour. This important tuber is consumed both by human and domestic animals. Boiling and fermenting before consumption help to reduce the oxalic acid content in it, which causes itching in some local varieties. Cocoyam is a perennial crop grown mainly for its edible roots [7]. NRCRI [9] report stated that after cassava and yam, cocoyam is the third most important crop among the root and tuber crop cultivated and consumed in Nigeria, and it is nutritionally superior to cassava and yam. Cocoyam is grown for its edible starchy corm and leaves, and is a major source of cheap vegetable carbohydrates, protein, fats, crude fibre, ash, carotene, thiamine, riboflavin, niacin, vitamin C and are more digestible compared to other root crops [10]. Cocoyam is a tuber crop consumed in all states in the south-east [11] and most parts of north-central Nigeria, being a popular root tuber. FAOSTAT [12] stated that in 2008, Nigeria was estimated to produce 5.39 million metric tonnes out of a total of 11.77 million metric tonnes of cocoyam world production. The major setback in cocoyam production according to Igbozulike [7] is deterioration of the corms, and the factors responsible for the loss in quality have been identified to include physiological, mechanical, rodents, birds, insect infestation as well as pathogenic, but most importantly fungal rot.

Methods

Plant collection

Seeds of neem were collected from tree plantation at Mission quarters, Wukari, Taraba State, Nigeria. The mature healthy seeds, leaves and stem bark were also collected randomly from different neem trees. The leaves, stem bark and seeds were dried after being washed under running tap water to eliminate dust and other foreign particles.

Sterilization of materials

All glass wares used in this study were washed with detergent, rinsed and sterilized in a dry, ventilated oven at 160 °C for 2 h. All media were sterilized by autoclaving at a temperature of 121 °C and 15 psi for 20 min. The scalpel, cork borer and inoculating needle were sterilized by dipping them into 70% ethanol and passing them over a Bunsen burner flame until red hot.

Ethanolic and aqueous extraction (microwave-assisted extraction—MAE)

The neem leaves, stem bark and seeds were grounded manually to form the smallest possible size after drying and sieved. The sample (20 g) was measured and added into the extraction container. Ethanol or distilled water (separately for ethanol and aqueous extraction) (200 ml) was then added, tightly covered and placed in the microwave oven. The oven door was closed and the power set between 400 and 680 Watts and allowed to run for a short burst of 3 min and stopped. The set-up was carefully removed and allowed to cool before re-introducing it for another burst of 3 min. This process was repeated until achieving a cumulative extraction period of 45 min. The set-up was allowed to cool before it was opened and filtered. The filtrate was then concentrated and used for antifungal assays.

Preparation of culture medium

Throughout the study, the assayed culture medium employed was LAB M Potato Dextrose Agar (PDA). This medium was used for the growth and maintenance of the fungal isolates. The preparation of Potato Dextrose Agar (PDA) was done according to the manufacturer recipe (39 g in 1 l of water). The medium was sterilized by autoclaving at 121 °C and 15 psi for 20 min for complete dissolution and homogeneity. Thereafter, it was allowed to cool to temperature of between 42 and 45 °C. One capsule of chloramphenicol was added to every 500 ml of sterile cooled PDA so as to prevent bacteria growth [13]. Approximately 15 ml of the cooled amended PDA was poured into each sterile petri dish of 8.6 cm (86 mm) diameter to solidify. The petri dishes that contained the medium were incubated for 24 h at ambient temperature (28 °C) to check for sterility before use as described by Cheesebrough [14].

Isolation of fungi

The isolation technique used by Onyike and Maduewesi [15] was employed in this study. A small section of the yam or cocoyam tissue showing advancing margin of rot and adjoining healthy tissue were cut using sterilized scalpel and cork borer whose surface was sterilized with 70% ethanol. The peeled portions of the yam or cocoyam obtained with the cork borer were placed on the solidified agar. Three peeled portions were placed per plate with equal distance between them. Three replicate plates for each of the rotten portion of site were made for each yam or cocoyam variety. The plates were incubated at 27 ± 2 °C for 7 days. Fungi associated with the yam or cocoyam rot affected tissues were observed and the frequency of isolation determined using method of Okigbo and Ikediugwu [16]. Subculturing was done to obtain pure cultures of the isolates.

Identification of fungal isolates

Subculturing of the isolates was made to obtain pure culture. The colonies growing on the plates were identified macroscopically and microscopically. Some examples are shown in Fig. 1a–f below. Colony colour, type (compact, loose, aerial hyphae), texture (velvety, cottony, coarse) shape and growth pattern were observed. Direct observation of culture under the light microscope (low power) by careful preparation of slides, staining with cotton blue-in-lactophenol was done. Detailed drawings of the diagnostic features and identification manual and guides according to Alexopoulos [17]; Nelson et al. [18]; Rippon [19]; Samson et al. [20]; and Snowdon [21] were used.

Fig. 1

Images of the pure isolates and inhibited isolates from cocoyam. a Rhizopus stolonifera. b Plate with inhibitions against Rhizopus stolonifera. c Aspergillus oryzae. d Plates with inhibitions against Aspergillus oryzae. e Aspergillus niger. f Plate with inhibitions against Aspergillus niger

Pathogenicity test

The pathogenicity test was carried out to establish which of the fungal isolates caused the rot and to determine whether they could induce similar symptoms on inoculation and be re-isolated, thus fulfilling Koch’s postulates. The method of Okafor [22], Okigbo and Ikediugwu [16] were adopted for the pathogenicity study. The pure fungal isolates obtained from infected yam tubers of Discorea rotundata and Cocoyam corm of Colocasia esculenta variety, respectively, for the period of the collection were used for inoculation. Healthy yam tubers (D. rotundata variety) and Cocoyam corm (C. esculenta variety) were surface-sterilized with 70% ethanol. Each healthy tuber was bored into about 1 cm deep, with a sterile 6 mm diameter cork borer at three different points on the yam and cocoyam surface (proximal, middle and distal regions). Another 6 mm sterile cork borer was used to cut about 5 mm of mycelia disc from edge of a 5 days old culture of each fungus isolate. The mycelia discs were used to inoculate the holes created by scooping out the plant tissue. The scooped out tissue of the yam and cocoyam were replaced after 5 mm pieces had been cut off to compensate for the thickness of the fungal culture. Two whole tubers of yam and two whole corm of cocoyam were inoculated per fungus. The control set-up consists of tubers that were similarly bored into and inoculated with sterilized PDA agar discs.

The wounds were sealed with petroleum jelly and inoculated tubers were placed in transparent polythene bags whose inside has been moistened with cotton wool soaked in sterile distilled water to maintain a high humidity. The inoculated tubers and corms were kept in the laboratory at room temperature for about 14 days and assessed for rot development by cutting through the points of inoculation where rots developed. The pathogens were re-isolated as previously described and their cultural and morphological characteristics were compared with those of the original isolates.

Antifungal activity of the extracts

Effect of plant extract on mycelia growth of the test fungi was studied using the food poisoning techniques [23]. One millilitre (1 ml) of each plant extract was dispensed per petri dish and 9 ml of the media (molten PDA) was added to each of the petri dish containing extract and carefully spread evenly over the plate, this gave rise to PDA–extract mixture with 10% extract concentration. This was used for examining the inhibition of mycelia growth. The plates were gently rotated to ensure even dispersion of the extracts. The agar extract mixture was allowed to solidify and then inoculated at the centre with a 4 mm diameter mycelia dish obtained from the colony edge of 7-day old pure cultures of each of the test fungi. Each treatment consists of three replicates. The negative control set-up consist of blank agar plate (no extract) inoculated with the test fungi as described above. Petri-dishes dispensed with molten PDA and one ml of ketoconazole dissolved in distilled water inoculated with each test fungus served as the commercial fungicides. All the plates were incubated at 28 °C for 5 days and examined daily for growth and presence of inhibition. Colony diameter was taken as the mean growth along two directions on two pre-drawn perpendicular lines on the reverse side of the plates. The effectiveness of the extract was recorded in terms of percentage inhibition, which was calculated according to the method described by Whipps [24].

$${\text{Percentage inhibition }} = \, R 1- R 2 \times \frac{100}{R1},$$

where R1 is the farthest radial distance of pathogen in control plate, while R2 is the farthest radial distance of pathogen in extract-incorporated agar plates.

Results and discussion

Pathogenicity test

From the yam, A. ochareus, S. rolfsii and L. theobromae were isolated, while A. niger, A. oryzae and R. stolonifer were isolated from cocoyam samples (Tables 1 and 2). Pathogenicity tests in cocoyam revealed that A. niger, A. oryzae and R. stolonifer caused rot. The nature of rot varies between the inoculated cocoyam tubers with various selected fungi. A. niger shows dry and soft rotting, and A. oryzae caused dry rot (Table 3). Among isolated fungi (Fig. 2), A. niger and A. oryzae are the most pathogenic, while R. oryzae is the least pathogenic as evident from the weight loss. There was obvious reduction in weight observed in corms of cocoyam exposed to fungal pathogenicity. Order of weight reduction from high to low in the cocoyam exposed to the fungi was 23.43 g (A. niger), 16.29 g (R. stolonifer) and 14.84 g (A. oryzae). The reduction in weight of the control (uninfected cocoyam) was only 1.73 g. Considering the moderate sizes of the cocoyam in Fig. 1, there was indeed high loss in weight and thus great pathogenicity of fungi examined.

Table 1 Macro- and micro-features of fungi isolates from Yam (Discorea rotundata)

Table 2 Macro- and micro-features of fungi isolates from cocoyam corm (Colocasia esculenta)

Table 3 Pathogenicity test result (cocoyam)

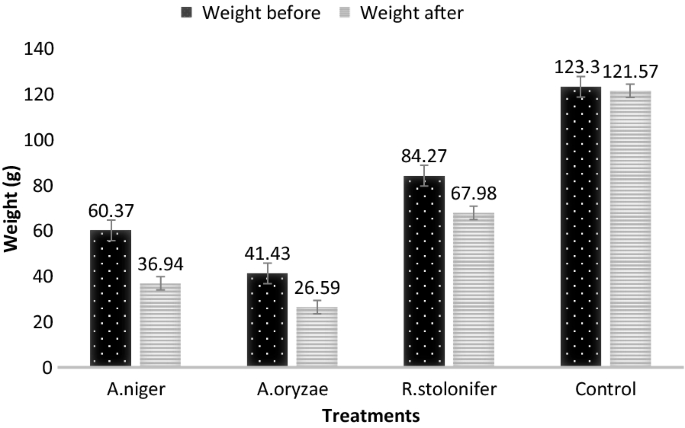

Fig. 2

The mean weight loss of cocoyam after pathogenicity test

Pathogenicity tests in yam tubers (Table 4) revealed rots in them as a result of infestation with L. theobromae, A. ochareus and S. rolfsii. The nature of rot varies between the inoculated yam tubers with various selected fungi. L. theobromae shows wet rotting, S. rolfsii caused rot with dirty white colour. Among isolated fungi, A. ochareus is the least pathogenic as evident from the weight loss (Fig. 3). Weight loss recorded due to fungal pathogenicity test in yam is shown in the order of weight loss per fungi from the most to the least as 326.25 g (S. rolfsii), 199.47 g (L. theobromae) and 164.54 g (A. ochareus). The control which was not infected showed only 6 g decrease in weight after 14 days. These results established the fact that these fungi has high pathogenicity as depicted by the drastic reduction in weight as well as the tissue rot sighted thereafter.

Table 4 Pathogenicity test result (yam)

Fig. 3

The mean weight loss of yam after pathogenicity test

These results demonstrated the fact that all the fungi investigated for pathogenicity of both yam and cocoyam are indeed pathogenic.

Antifungal activity of the extracts on fungi isolated from cocoyam

Analysis of variance at 95% showed that all the parts (leaf, bark and seed) of the test plant (neem) used in this study significantly (P < 0.05) inhibited the growth of the fungal organisms against cocoyam rot (Table 5). Ethanolic seed extract (ESE) had the highest inhibitory effect against A. oryzae (91.47 ± 2.93% inhibition), while it was also effective against R. stolonifer (88.37 ± 1.17% inhibition), and A. niger (84.88 ± 3.07% inhibition). The antifungal effects of aqueous seed extract (ASE) on those fungi showed inhibitions of 85.66 ± 2.92% (A. oryzae), 81.78 ± 2.92% (A. niger) and 79.07 ± 2.33% (R. stolonifer), which though without any significant difference, (P > 0.05) compared to that of ethanolic seed extract (figures are shown above), showed lower inhibition. Thus, both ESE and ASE showed similar antifungal activities.

Table 5 Percentage mean zones of inhibition of plant extracts on fungal rot of cocoyam

Ethanolic leave extract (ELE) showed great growth inhibitory effect of 90.70 ± 2.33% against A. oryzae, which was significantly higher (P < 0.05) than the growth inhibition on R. stolonifer (76.74 ± 2.33%) and A. niger (77.52 ± 1.35%), even though the extract showed significantly high growth inhibition against the three fungi examined. Aqueous leave extract (ALE) showed inhibitory effects of 85.66 ± 2.92% against A. oryzae, 75.97 ± 3.55% against R. stolonifer and 72.87 ± 3.55% against A. niger. There was no significant difference among growth inhibitions (P > 0.05) of the aqueous leave extract (ALE) against the fungal rot in cocoyam in this research, even though it had significant antifungal effect on all the fungi.

Ethanolic stem bark extract (EBE) also showed very high growth inhibition against R. stolonifer, (91.47 ± 5.85%) and A. oryzae (84.51 ± 1.76%) which were significantly (P < 0.05) different from that of A. niger (39.53 ± 8.39%). It can be inferred that ethanolic stem bark extract (EBE) was not very effective against A. niger as shown by the result above.

Aqueous stem bark extract (ABE) showed significant (P < 0.05) high growth inhibition against A. oryzae (96.79 ± 1.60%), R. stolonifer (94.96 ± 1.34%) and A. niger (87.21 ± 1.16%).

Meanwhile, ketoconazole which was used as the positive control showed 100% inhibition against the growth of the fungi A. oryzae and 89.92% on A. niger, but aqueous stem bark extract (ABE) gave inhibitory effect of 94.96 ± 1.34% on the growth of R. stolonifer.

Most effective against the growth of A. niger is ethanolic seed extract (ESE) (88.37 ± 1.17% inhibition) which does not differ significantly with the control (Ketoconazole) (89.92 ± 1.35% inhibition). Against the growths of A. oryzae and R. stolonifer, aqueous stem bark extract (ABE) with growth inhibitions of 96.79 ± 1.60% and 94.96 ± 1.34% ,respectively, was most effective. In general, it is reasonable to conclude that all the various typed of extracts of neem plant were effective against the growth of the fungai-induced rot in cocoyam examined (except EBE which was not effective against A. niger).

Antifungal activity of the extracts on fungi isolated from yam

The effect of extracts on the test organisms of yam rot was significant (P < 0.05). Aqueous extracts of the stem bark (ABE) gave the highest inhibitory effect of 93.80 ± 1.78% against A. ochareus followed by ethanolic extract of leaf (ELE) with 88.37 ± 2.33% inhibition, while ethanolic seed extract (ESE), aqueous seed extract (ASE), aqueous leaf extract (ALE) and ethanolic stem bark extract (EBE) showed inhibition rates of 87.21 ± 1.16%, 82.27 ± 0.50%, 81.78 ± 3.74% and 87.60 ± 1.34%, respectively (Table 6). The inhibitory effect of ABE was significantly (P < 0.05) higher than that of other extracts, while there was no significant difference in the inhibitory effects of ESE, ELE and EBE on A. ochareus. ALE and ASE did not show any significant difference (P > 0.05), meanwhile ketoconazole which was used as the positive control showed 100% inhibition on the growth of the fungus. The ethanolic extract of leave (ELE) had the highest inhibitory effect on L. theobromae by 100%, followed by leave aqueous extract (ALE) and aqueous extract of the stem (ASE) with approximately 92.64% inhibition, respectively. The least inhibitory effect against L. theobromae was by aqueous extract of the seed (ASE) with 86.43 ± 4.08% (Table 6). The inhibitory effect of ethanolic extract of the leave (ELE) against L. theobromae (100%) was significantly (P < 0.05) greater than that of all the other extracts including ketoconazole. However, there was no significant difference (P  > 0.05) between inhibitory effects of ethanolic seed extract, aqueous leave extract, ethanolic stem extract and aqueous stem extract. The control showed an effective inhibition of 75.19 ± 1.77% but not significantly (P < 0.05) higher than all the other extracts (Table 6).

Table 6 Percentage mean zones of inhibition of plant extracts on fungal rot of yam

Ethanolic extract of the neem plant seed (ESE) gave the highest inhibitory effect on Sclerotium rolfsii (87.99 ± 2.42%), followed by ethanolic leave extract (ELE) (85.66 ± 2.92%), while aqueous extract of stem bark (ABE) showed the least inhibition (70.93 ± 5.81%). The inhibitory effect of ethanolic extract of the leave (ELE) was not significantly different (P  > 0.05) from that of aqueous seed extract (ASE) and ethanolic leave extract (ELE). Also there was no significant difference (P   > 0.05) between the inhibitory effect of aqueous leave extract, aqueous stem extract, ethanolic stem extract and aqueous seed extract.

Ketoconazole showed an effective inhibitory effect (100%) on the growth of the fungus. The values obtained in this study are similar to what was reported by Anukworji et al. [25]. They treated S. rolfsii and L. theobromae isolated from cocoyam with aqueous and ethanolic extract of neem leaf.

These results agreed with the finding of many researchers. Amadioha [26] discovered that aqueous neem seed and neem extract reduced the growth of the fungi particularly Pyricularia oryzae on rice. Bennett and Wallsgrove [27]; Grayer and Harbourne [28], observed that neem phytochemicals (glycosides and saponins) have antifungal activity. Osbourn [29], observed that many saponins exhibit potent antifungal activity and are often present in relatively high levels in healthy plants and as a result have been implicated as determinants of a plant’s resistance to fungal attack.

This suggests that these phytochemical components might have been responsible for the observed antifungal properties of the test plant used in the present study.

On the contrary, Oluma and Elaigwe [30] observed that extracts of A. indica had no inhibitory effect on the mycelial growth and sclerotial formation of Macrophomina phaseolina. Premlatha [31] also gave similar report on the ineffectiveness of neem extract against Rhizoctonia solani. But Nwachukwu and Umechuruba [32] stated that leaf extracts of neem were shown to be efficacious on major seed-borne diseases of African cocoyam bean seeds and on seed germination and seedling emergent diseases. The active principles present in plants are influenced by many factors, which include the age of plant, extracting solvent, method of extraction and time of harvesting plant materials [33]. According to Okigbo and Ogbonnaya [33], the use of plants extracts for plant disease management is economically viable and poses little environmental risk, and the plants are available to farmers in Nigeria, the tropics and many parts of the world that do not have ready access to other synthetic fungicides. Umar et al. [34] and Makein et al. [35] pointed out that Azadirachtin extracts from the seeds, leaves and bark of the neem tree has been reported to have strong biological activities against insect pest, but with very low toxicity to mammals and the environment. According to Kurucheve et al. [36], the presence of inhibitors to the fungal toxic principle may contribute to differences observed in the antifungal activity of some plant extracts.

Conclusion

All the plant extracts showed antifungal activities at varied percentage mean zones of inhibition. Various neem plant parts extracts showed inhibition against fungal growth from isolates of rotted cocoyam with mean inhibition between 39.53 ± 8.39% and 96.76 ± 1.60%. Apart from ethanolic stem bark extract which gave 39.53 ± 8.39% limited zone of inhibition against A. niger growth, the rest of the extract exhibited good zones of inhibition ranging between 72.87 ± 3.55 and 96.79 ± 1.60%. The extracts were effective against fungal isolates from the rotten yam samples. The mean percentage zones of inhibition of all extracts of the neem plant parts showed more effectiveness than the positive control (Ketoconazole) against L. theobromae growth. Aqueous stem bark extract with 93.80 ± 1.78% mean zone of inhibition showed comparable effectiveness to the control (100% inhibition) against A. ochareus growth, while against S. rolfii growth there was good inhibition by all the extracts though not as that of the control. The fungi toxic potential of these plant extracts on rot-inducing fungi of stored yam and cocoyam recommends their use to farmers as alternative to commercial/synthetic fungicides.
